Description
Features:
* Prevents peak currents damaging battery, ESC, motors, wiring and connectors
* Verifies sufficient operating voltage under load
* Individual cell balancing, set cutoff voltages, check battery capacity health
* Confirms proper battery charger operation (connect between your battery & charger)
* Detect receivers and actual operating current to make sure whether an UBEC is needed
* Blue backlit LCD display
* 2x Anderson Style Plug included

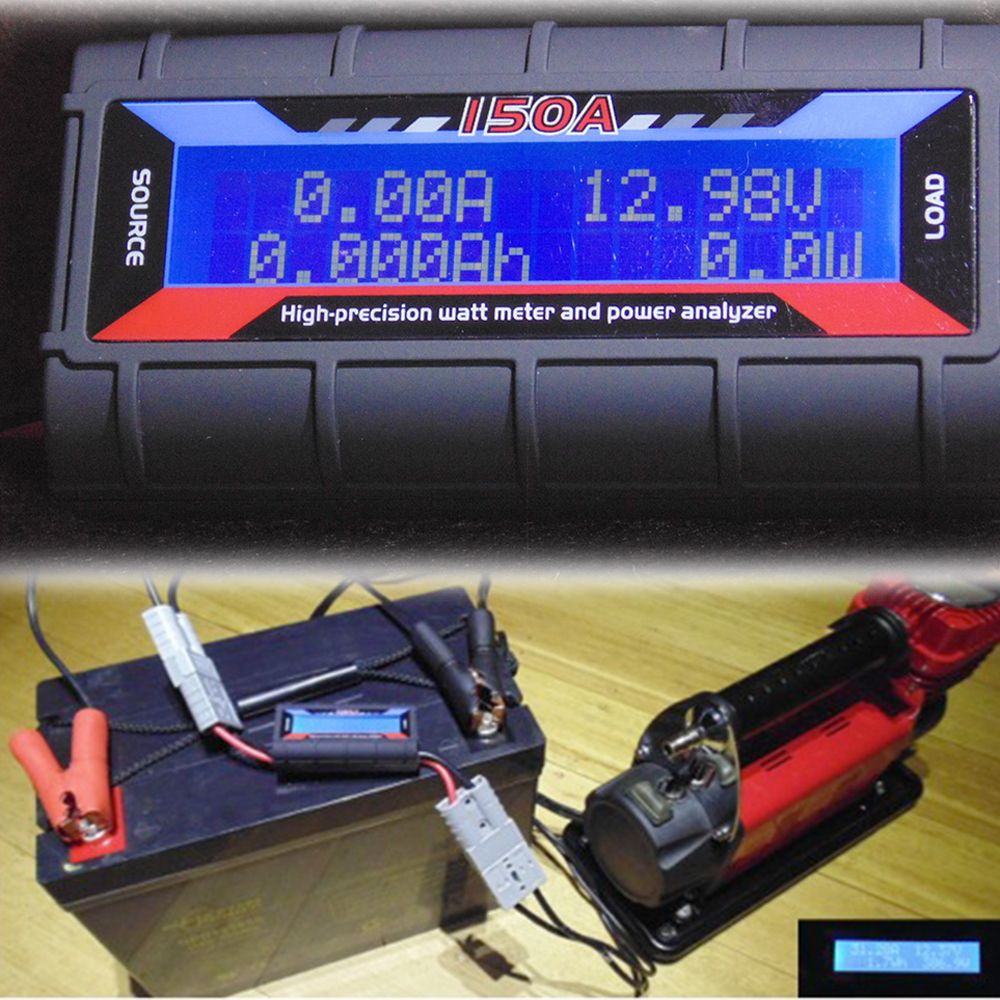

These meters are easily plugged in, in-line, to measure:
* Amp Hours(Ah) - Total charge Ah delivered from source to load
* Amp Peak (Ap) - Highest amp value delivered (Typically startup cycle for inverters, compressors, fridges etc.)
* Amp(A) - Amps being delivered at that point in time
* Voltage - Source voltage, and minimum source voltage
* Power (Watts) - Peak watts, watts being delivered at that point in time
* Good for measuring voltage at lowest point of charge (e.g. minimum overnight voltage of car fridge battery)
Specifications:
Operates from 4.8-60V
0V with optional auxiliary battery
Measures: 0 to 130 Amps (resolution 0.01A)
Measures: 0 to 60V (resolution 0.01A)
Measures: 0 to 6554W (resolution 0.1W)
Measures: 0 to 65 Ah (resolution 0.001 Ah)
Measures: 0 to 6554 Watt Hours (resolution 0.1 Wh)
Dimensions: 85 x 42 x 25mm
Weight: 85g
Color: Black
Package Content:

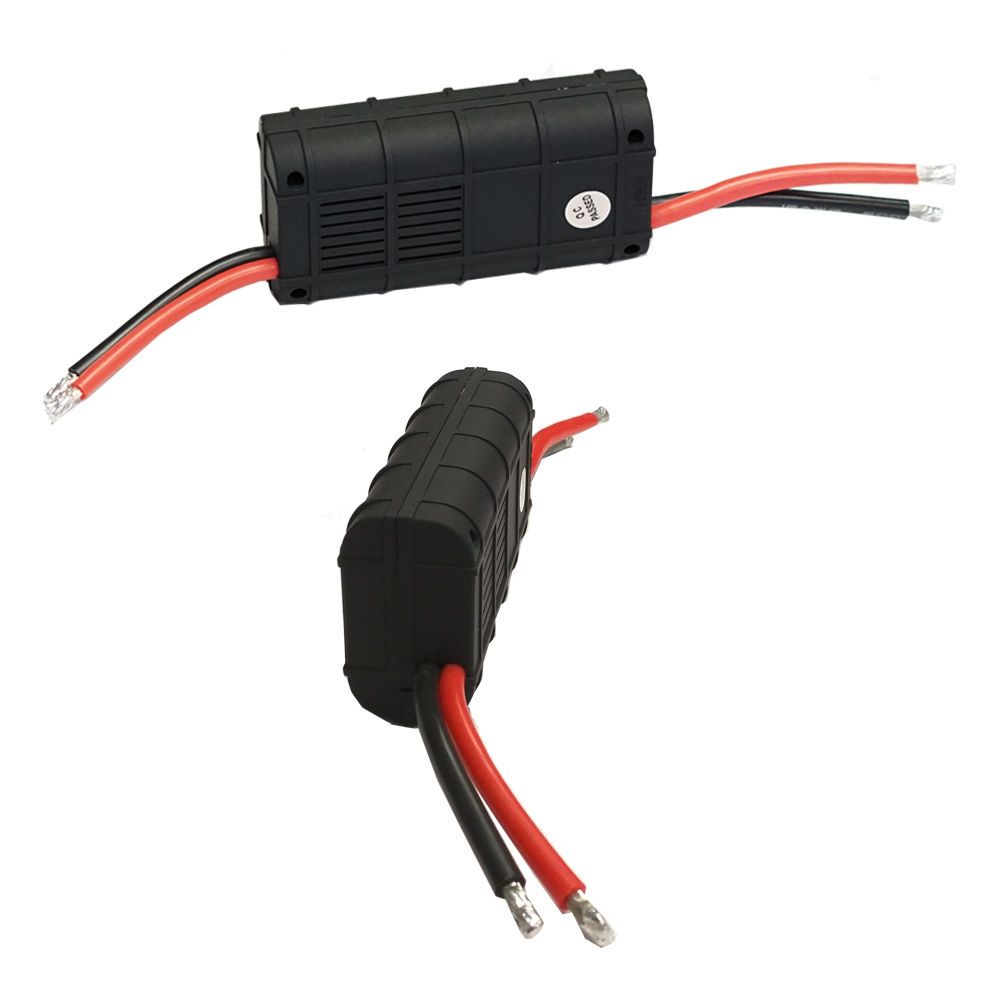

1 x Watt Meter and Power Analyzer 150 Amps with 2 Anderson Style Plug
1 x User's Manual
